| Place of Origin: | China |
| Markenname: | MBS |
| Zertifizierung: | TUV |
| Model Number: | LXR045 |
| Name: | Circular-saw-blade |
|---|---|
| Tooth pitch: | Laser cut or punched |
| Teeth: | Sharpened |
| Color: | Natural |
| Function: | for wood cutting |
| Feature: | body with Low noise laser cut |
| Surface treatment: | Oiled or painted |
| Body material: | 65Mn |
| Size: | 100mm up to 1200mm |
| Teeth Number: | 40 up to 160 |
| Plate thickness: | 1mm up to 6.5mm |

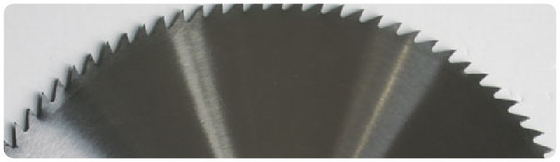

Kreissägeblatt für Holz | Körfűrészlap fa számára | Circular-saw-blade | MBS Hardware | ø 100 - 1200 mm
Für allgemeine, einfache, präzise Schnitte in Weichholz, Hartholz, Sperrholz, Platten, Spanplatten, Mehrschichtplatten usw...
Qualität: für den Industrie- und Profimarkt
Bohrung: alle Größen und auf Anfrage, einschließlich 5/8", 1", 20mm, 22,23mm, 25mm, 30mm, 35mm.
Durchmesser: 1200mm
Plattenstärke: 5mm, 5,5mm, 6,0mm, 6,5mm
Zahnanzahl: Z=80, 100, 120, 140, 160
Weitere Größen und Spezifikationen sind wie folgt:
| Durchmesser (mm) | Plattenstärke (mm) | Zahnanzahl |
| 100 | 1.0 | 40, 56 |
| 115 | 1.0 | 40, 56 |
| 125 | 1.0 | 56, 64, 80 |
| 130 | 1.0 | 56, 64, 80 |
| 140 | 1.0 | 56, 64, 80 |
| 150 | 1.0 | 56, 64, 80,90 |
| 156 | 1.0 | 56, 64, 80,90 |
| 160 | 1.0 | 56, 90, 100, 110 |
| 170 | 1.0 | 72, 90, 100, 110 |
| 180 | 1.2 | 72, 90, 100, 110 |
| 184 | 1.2 | 72, 90, 100, 110 |
| 190 | 1.2 | 72, 90, 100, 110 |
| 200 | 1.2 | 56, 72, 80, 100 |
| 200 | 1.4 | 56, 72, 80, 100 |
| 200 | 1.6 | 56, 72, 80, 100 |
| 230 | 1.4 | 36, 56, 72, 80 |
| 230 | 1.6 | 36, 56, 72, 80 |
| 230 | 1.8 | 36, 56, 72, 80 |
| 250 | 1.2 | 36, 56, 80, 100, 120 |
| 250 | 1.4 | 36, 56, 80, 100, 120 |
| 250 | 1.6 | 36, 56, 80, 100, 120 |
| 250 | 1.8 | 36, 56, 80, 100, 120 |
| 300 | 1.6 | 36, 56, 80, 100, 120 |
| 300 | 1.8 | 36, 56, 80, 100, 120 |
| 300 | 2.0 | 36, 56, 80, 100, 120 |
| 315 | 1.6 | 36, 56, 80, 100, 120 |
| 315 | 1.8 | 36, 56, 80, 100, 120 |
| 315 | 2.0 | 36, 56, 80, 100, 120 |
| 350 | 1.8 | 56, 80, 100, 120, 140 |
| 350 | 2.0 | 56, 80, 100, 120, 140 |
| 350 | 2.2 | 56, 80, 100, 120, 140 |
| 400 | 2.0 | 56, 80, 100, 120, 140 |
| 400 | 2.2 | 56, 80, 100, 120, 140 |
| 400 | 2.5 | 56, 80, 100, 120, 140 |
| 450 | 2.2 | 56, 80, 100, 120, 140 |
| 450 | 2.5 | 56, 80, 100, 120, 140 |
| 450 | 2.8 | 56, 80, 100, 120, 140 |
| 500 | 2.2 | 56, 80, 100, 120, 140 |
| 500 | 2.5 | 56, 80, 100, 120, 140 |
| 500 | 2.8 | 56, 80, 100, 120, 140 |
| 500 | 3.0 | 56, 80, 100, 120, 140 |
| 550 | 2.5 | 56, 80, 100, 120, 140 |
| 550 | 2.8 | 56, 80, 100, 120, 140 |
| 550 | 3.0 | 56, 80, 100, 120, 140 |
| 600 | 2.5 | 56, 80, 100, 120, 140 |
| 600 | 2.8 | 56, 80, 100, 120, 140 |
| 600 | 3.0 | 56, 80, 100, 120, 140 |
| 600 | 3.2 | 56, 80, 100, 120, 140 |
| 700 | 2.8 | 56, 80, 100, 120, 140 |
| 700 | 3.0 | 56, 80, 100, 120, 140 |
| 700 | 3.2 | 56, 80, 100, 120, 140 |
| 750 | 3.0 | 56, 80, 100, 120, 140 |
| 750 | 3.2 | 56, 80, 100, 120, 140 |
| 750 | 3.5 | 56, 80, 100, 120, 140 |
| 800 | 3.2 | 56, 80, 100, 120, 140 |
| 800 | 3.5 | 56, 80, 100, 120, 140 |
| 800 | 3.8 | 56, 80, 100, 120, 140 |
| 800 | 4.0 | 56, 80, 100, 120, 140 |
| 900 | 3.5 | 56, 80, 100, 120, 140 |
| 900 | 4.0 | 56, 80, 100, 120, 140 |
| 900 | 4.5 | 56, 80, 100, 120, 140 |
| 1000 | 4.0 | 56, 80, 100, 120, 140 |
| 1000 | 4.5 | 56, 80, 100, 120, 140 |
| 1000 | 5.0 | 56, 80, 100, 120, 140 |
| 1100 | 4.5 | 80, 100, 120, 140, 160 |
| 1100 | 5.0 | 80, 100, 120, 140, 160 |
| 1100 | 5.5 | 80, 100, 120, 140, 160 |
| 1200 | 5.0 | 80, 100, 120, 140, 160 |
| 1200 | 5.5 | 80, 100, 120, 140, 160 |
| 1200 | 6.0 | 80, 100, 120, 140, 160 |
| 1200 | 6.5 | 80, 100, 120, 140, 160 |
